Equipment for animal physiology research
Moscow, Zelenograd

Mazes

Mazes of our production is made of polyvinyl chloride (PVC).
It is a tough material that is not sensitive to scratches, easy to clean with water, alcohol, and acetone.
Colors: black, dark gray, light gray, white.

Transparent walls are made of plexiglass (acrylic).

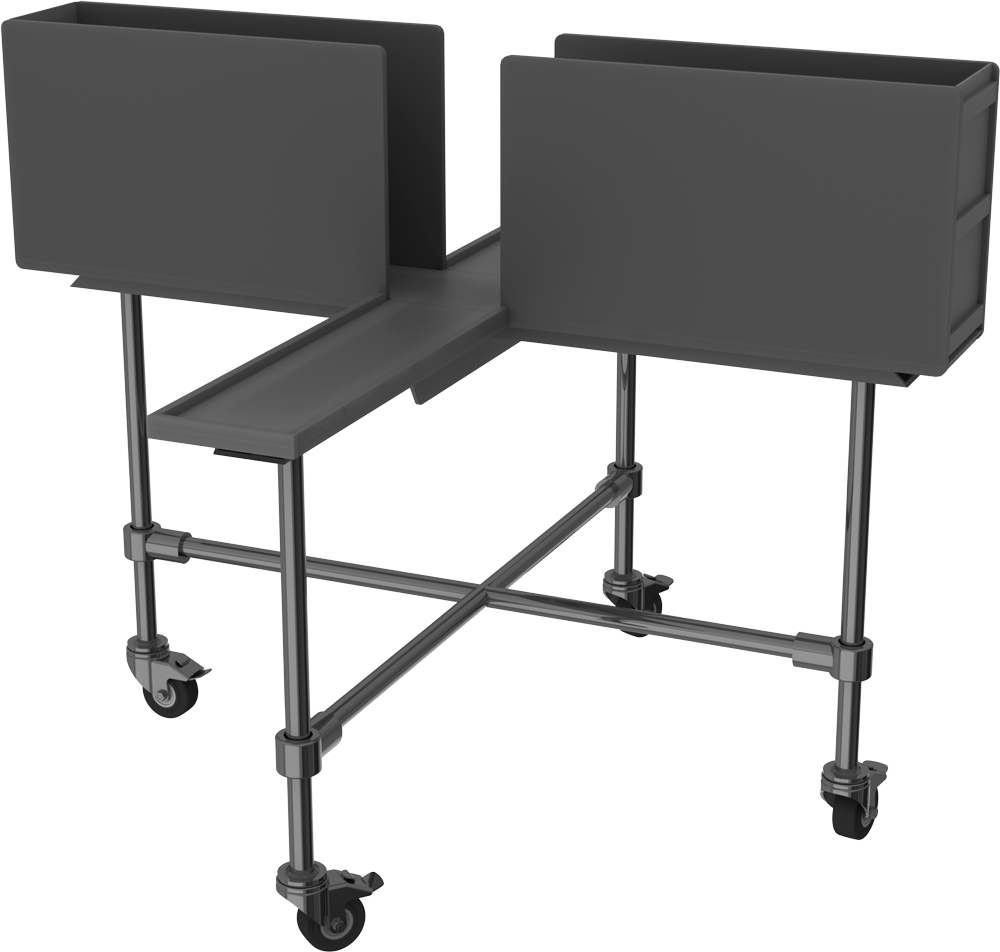

Elevated cross maze

Elevated cross maze

It is designed to perform psychopharmacological tests. It is an installation with two open and two closed sleeves elevated to a height of 1 meter from the floor. The studying of the behavior of rodents in this labyrinth is a standard technique for studying stress and anxious behavior rats and mice. It is believed that the choice of a closed sleeve is caused by stress, whereas an open sleeve is chosen with a low level of anxiety.

The installation is made of quality PVC, the surface is not slippery and scratch resistant. The labyrinth itself is a collapsible complex, allowing after each test to easily remove the details forming the floor and side walls, and wash them.

The test is easy to automate with videotracking and data processing software package«Minotaur». Minotaur software provides a possibility of automatic tracking of movements of a rodent (a rat or a mouse) in a labyrinth with a calculation of all main statistics of activity.


Specifications and prices
Facility «Elevated cross maze» fro rats
cross-shaped arena, stand 55 cm
65 000 Р
Facility «Raised cross-shaped labyrinth» for mice
cross-shaped arena, stand 40 cm
42 000 Р
Cross-shaped arena for rats
sleeve length 500 mm, width 140 mm, height of walls 300 mm
any combination of colors, walls and floor: black, dark gray, light gray, white, transparent
50 000 Р
Cross-shaped arena for mice
sleeve length 300 mm, width 50 mm, wall height 150 mm
any combination of colors, walls and floor: black, dark gray, light gray, white, transparent
32 000 Р

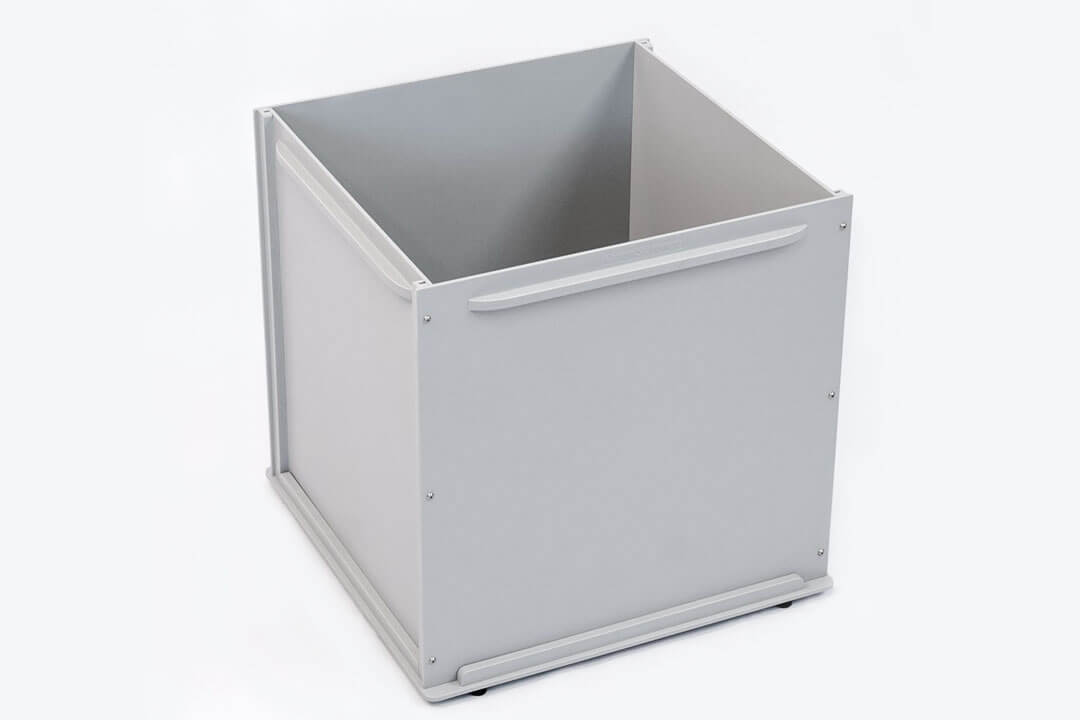

Open space

Allows you to explore the emotional-behavioral activity of animals, the various components of behavior in the new stressful conditions. Designed to perform the pharmacological tests. Is a circular or square arena divided into sectors, with holes or without (depending on the task the experimenter).

The installation is made of high-quality PVC, the surface is not slippery and resistant to scratches. The labyrinth itself is a collapsible complex, allowing after each test to easily remove the details forming the floor and side walls, and wash them.

The test is easy to automate with videotracking and data processing software package «Minotaur». Minotaur software provides a possibility of automatic tracking of movements of a rodent (a rat or a mouse) in a labyrinth with a calculation of all main statistics of activity.

Additionally, it is possible to install a special infrared camera underneath the maze to check looking into the hole.


Specifications and prices (LxWxH)
Facility "Square open field for rats or mice", 40x40x40 cm
color - light, the presence of holes in the floor (to choose)
12 000 Р
Facility "Square open field for rats or mice", 45x45x40 cm
color - light, the presence of holes in the floor (to choose) /span>
15 000 Р
Facility "Square open field for rats or mice", 50x50x40 cm
color - light, the presence of holes in the floor (to choose)
18 000 Р
Facility "Square open field for rats or mice", 24x24x24 cm
color - light, the presence of holes in the floor (to choose)
9 000 Р
Facility "Square open field for rats or mice", 100x100x40 cm
color - light, the presence of holes in the floor (to choose)
36 000 Р

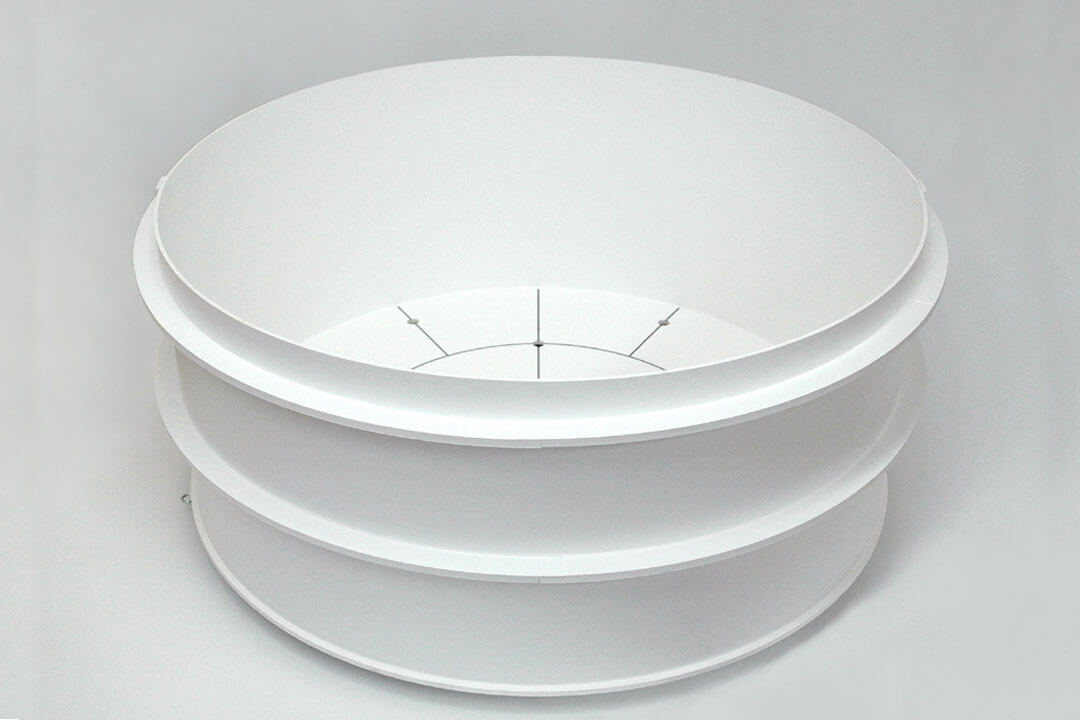

Facility «Round open field for rats», D100x45 cm
color - light, the presence of holes in the floor (to choose)
45 000 Р
Facility «Round open field for mice», D64x32 cm
color - light, the presence of holes in the floor (to choose)
35 000 Р
High legs 50 cm
4 pcs, aluminum, are needed to lift the maze above the floor, are required for use with an outdoor camera to register peeking holes
3 000 Р
Optional equipment
"Bright sky"
Universal hardware module for video recording of movements of rodents from above
Set: wired high-resolution USB camera (1920x1080) with wide-angle lens, adjustable infrared illumination, tripod-crane.
Designed for use with «Minotaur» software.
Can be used as a standard video input device
30 000 Р
"Night sky"
universal hardware module for registering lookings into burrow (to be installed on the floor of the labyrinth)
The kit: USB wireless camera high resolution (1920x1080) with wide angle lens, aimed the infrared lighting, a set of fabric blinds.
Designed for use with «Minotaur» software.
Can be used as a standard video input device
30 000 Р

T-shaped labyrinth

It is designed to perform psychopharmacological tests. Allows you to explore the spatial and working memory of rodents as a result of alternating sleeves with reward.

The installation is made of high-quality PVC, the surface is not slippery and resistant to scratches. The labyrinth itself is a collapsible complex, allowing after each test to easily remove the details forming the floor and side walls, and wash them. Doors, restricting entry into the sleeves of the labyrinth are removable.

It is easy to automate the test with the video tracking and data processing software package «Minotaur». Minotaur software provides a possibility of automatic tracking of movements of a rodent (a rat or a mouse) in a labyrinth with a calculation of all main statistics of activity.


Specifications and prices (LxWxH)
Facility "T-shaped labyrinth" for rats
Starting sleeve - 50x16 cm, side sleeves - 50x10 cm, height 32 cm, color - optional
42 000 Р
Facility "T-shaped labyrinth" fro mice
Sleeves - 30x10 cm, height 20 cm, color - optional
30 000 Р
